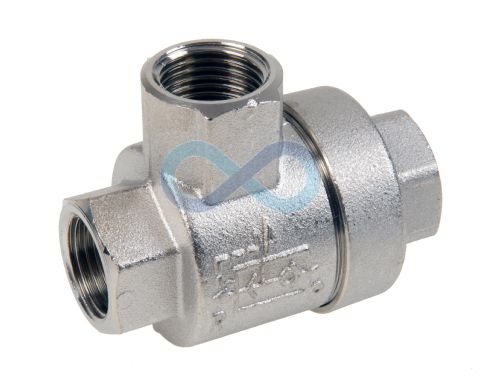

Quick Exhaust valve M5 - 1" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

A range of quick exhaust valves for use in compressed air & pneumatic systems. M5 & 1/8" to 1" BSP Connections.

These valves are mainly used to increase the speed of a pneumatic cylinder by allowing the air to exhaust directly rather than passing through the main control valve. They can be also be used for other applications in pneumatic circuits.

Airflow is from port P to A and from port A to R so when fitted to a cylinder port A should be connected to the cylinder, P to the feed in and R is the exhaust port which would normally be fitted with a silencer.

Suitable for use with lubricated and non-lubricated compressed air.

At Duncan Rogers we specailise in control valves for pneumatic systems - whatever your requirements please contact us a member of our team will be happy to help.

Technical Details

Body:

Nickel plated brass

Seals:

Nylon

Membrane:

Temperature:

-20 to +80 deg C

Pressure:

0.5 - 10 bar

Manufacturer ref:

VSR

Flow rates:

see datasheet

Datasheets

Quick Exhaust valve M5 - 1 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

Ref	Thread	Order Code	Available	1+	5+	20+
60500	M5	148451	0	£7.32	£6.41	£5.34
60501	1/8" BSP	148452	0	£6.34	£5.55	£4.63
60502	1/4" BSP	148453	8	£9.16	£8.02	£6.68
60504	3/8" BSP	148454	0	£14.25	£12.47	£10.39
60503	1/2" BSP	148455	0	£16.87	£14.76	£12.30
60505	3/4" BSP	148456	10	£28.05	£24.54	£20.45
60506	1" BSP	148457	5	£30.97	£27.10	£22.59

(All Prices Exclude VAT)
