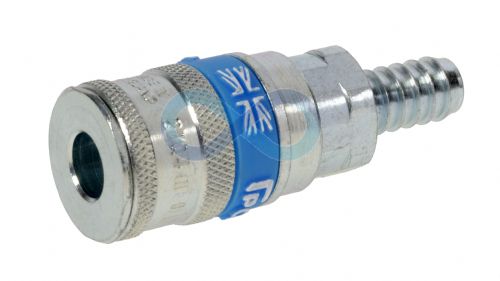

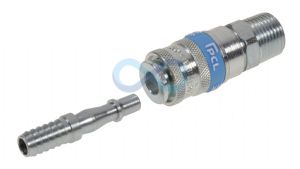

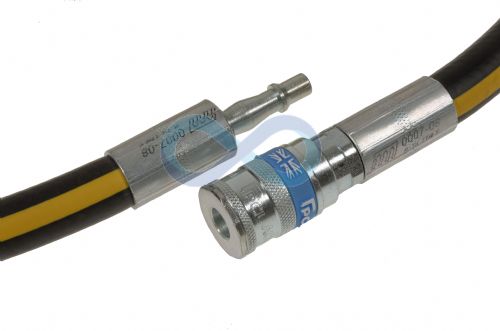

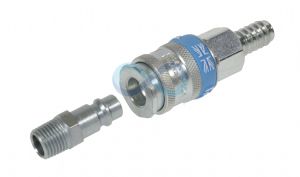

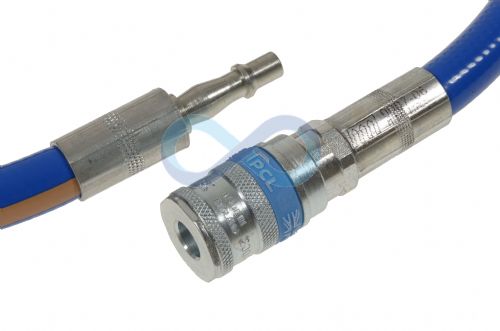

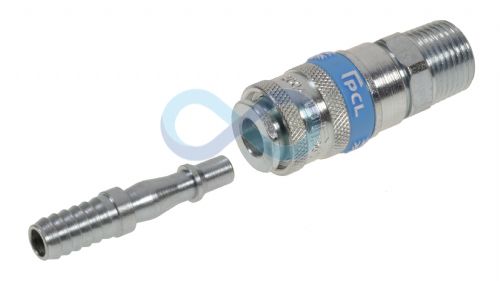

PCL Standard (Interchangeable: Rectus 19)
|
The original quick release coupling. Widely used in garage/automotive sector as well as manufacturing and processing industries.
Maximum flow rate - 43 cfm; Maximum Pressure - 14 bar
|
|
|
|
Airflow
Designed for fixed installations
|
Vertex
Designed for trailing hose applications
|

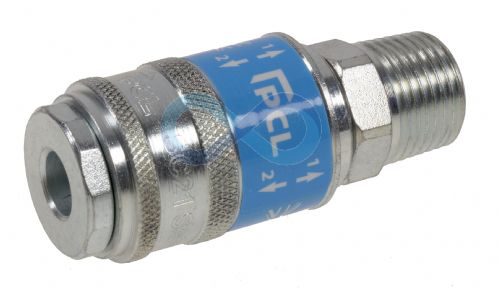

Safety
Prevents hoses from whipping when disconnected
|
|
|
|
|
|
|
Schrader Standard (Interchangeable: Rectus 17, PCL PF)
|
Also known as "Twist Lock" coupling, the Schrader standard coupling is a very long established, good quality, durable product used in factories across the world.
Maximum flow rate - 50 cfm; Maximum Pressure - 17 bar
|
|
|
Schrader Standard
Genuine Schrader Standard Coupling
|
PCL PF
Highly competitive
|
|
|
|
|
Series 25 (Interchangeable: Rectus 25/26, Cejn 320, Parker Intercheck 35, PCL XF, Tema 1600, Norgren 234/238, JWL 520/530) |
The Series 25 coupling gives you very high flow rates and has become the European standard coupling profile.
Maximum flow rate - 130 cfm; Maximum Pressure - 35 bar
|
|
|
|
Rectus 25
Incorporates Ultraflow technology
|
PCL XF
Highly competitive
|
PCL XF Safety
Two stage self venting release
|
|
|
|
|
|
Claw Couplings (Also known as "Crow's Foot" Couplings
|
These zinc plated xompressor couplings widely used in construction and on plant around the world.
|
|
|
European
BSP Threads
|
US Universal
NPT Threads
|
|
|
|
|
Legris C9000 Safety Couplings
|
A range of ergonomic polymer couplings designed for safety and offering very high flow performance. Disconnection is in 2 stages to prevent accidents.
Maximum Flow Rate - 44-85 cfm; Maximum Pressure - 16 bar
|
|
|
ISO B
Available with 5.5mm or 8mm bore
|
Series 25
Interchangeable with Series 25
|
|
|
|
|
Other Rectus Couplings
|
|
|
|
|
Rectus 23
Conforms to ISO B6
|
Rectus 27
For use in arduous conditions
|
Rectus 30
Conforms to ISO 6150 B8
|
Rectus 95/96
Breathing Air Couplings
|
|
|
|
|
|
|
Other Couplings
|
|
|
|
PCL 100
Widely used in garage, automotive and industrial applications
|
Instantair
Bayonet Coupling formerly know as Broomwade
|
Macdonald
For high pressure compressed air or inert gases
|
|
|
|
|
|
ISO A & B Hydraulic Couplings
|
A range of quick release couplings conforming to ISO A and ISO B for hydraulic and other applications.
Maximum Pressure - 50-500 bar
|
|
|
ISO A
Interchangeable: Parker6600, Perfecting K, Safeway S56, Snap Tite 61, Tomco A5600, Aeroquip FD56, DNP PAV, Stucchi BIR,
|
ISO B
Interchangeable: Hansen HK, Aeroquip 45, Parker 60, Dynaquip DH, Snaptite 72, Faster HNV
|
|
|
|
|
Flat Face Hydraulic Couplings
|
Flat face couplings according to ISO 16028. Suitable for hydraulic and other applications.
Maximum Pressure - 200-315 bar
|
|
|
Stucchi
|
Prolasa
|
|
|
|
|
