Olab Male Stud Push In 4-12mm

Olab Male Stud Push In 4-12mm

Olab Male Stud Push In 4-12mm

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

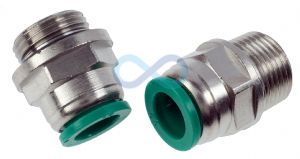

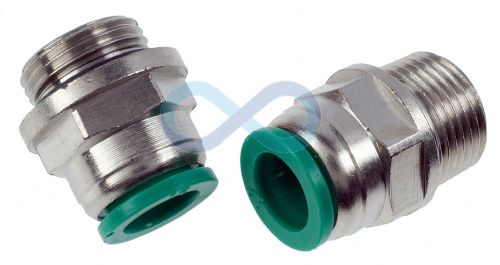

Male stud push in fitting with a nickel plated brass body and green plastic collet.

Available with BSP parallel and taper threads and for tube outside diameter 4mm to 12mm.

Technical Details

Please Note

For data sheet reference,

Manufacturers' part numbers refer as follows:

UMR=BSPP thread

UMRC=BSPT thread

Datasheets

Olab Male Stud Push In 4-12mm datasheet
Click Below

1) F100 Flash General

2) Stud Male Push In

Prices (Click quantity for more availability info)

	Tube OD	Thread	Order Code	Available	1+	10+	50+	Quantity
BSPP Thread
	4mm	G1/8"	111581	237	£2.39	£1.96	£1.67
	-	G1/4"	111582	32	£2.92	£2.40	£2.04
	5mm	G1/8"	111583	52	£2.55	£2.09	£1.78
	-	G1/4"	111584	17	£3.33	£2.74	£2.32
	6mm	G1/8"	111585	232	£2.40	£1.98	£1.68
	-	G1/4"	111586	186	£2.46	£2.02	£1.72
	8mm	G1/8"	111587	139	£2.65	£2.18	£1.85
	-	G1/4"	111588	26	£2.65	£2.18	£1.85
	-	G3/8"	111589	52	£3.12	£2.56	£2.18
	10mm	R1/4"	111591	0	£3.18	£2.61	£2.22
	-	G3/8"	111592	86	£3.28	£2.69	£2.29
	-	G1/2"	111593	73	£4.45	£3.66	£3.11
	12mm	G1/4"	111594	12	£4.53	£3.72	£3.16
	-	G3/8"	111595	98	£4.56	£3.75	£3.18
	-	G1/2"	111596	92	£4.91	£4.03	£3.42
BSPT Thread
	4mm	R1/8"	111601	25	£2.23	£1.83	£1.55
	-	R1/4"	111602	13	£2.31	£1.90	£1.61
	5mm	R1/8"	111603	47	£2.42	£1.99	£1.69
	-	R1/4"	111604	34	£2.55	£2.10	£1.78
	6mm	R1/8"	111605	31	£2.21	£1.82	£1.54
	-	R1/4"	111606	146	£2.35	£1.93	£1.64
	8mm	R1/8"	111607	64	£2.55	£2.10	£1.78
	-	R1/4"	111608	66	£2.55	£2.09	£1.78
	-	R3/8"	111609	64	£2.86	£2.36	£2.00
	10mm	R1/4"	111611	81	£3.05	£2.51	£2.13
	-	R3/8"	111612	44	£3.02	£2.48	£2.11
	-	R1/2"	111613	67	£4.42	£3.63	£3.08
	12mm	R1/4"	111614	33	£4.16	£3.42	£2.90
	-	R3/8"	111615	80	£4.28	£3.52	£2.99
	-	R1/2"	111616	60	£4.66	£3.83	£3.25

(All Prices Exclude VAT)
