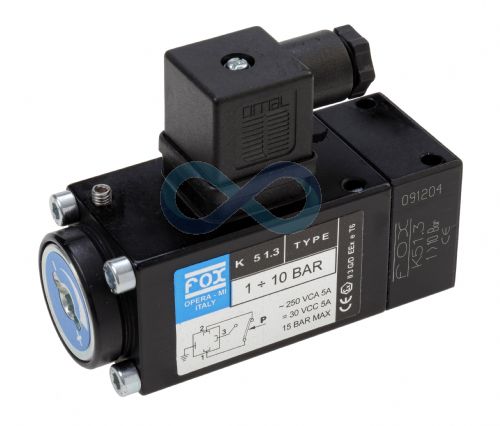

K5 Series Adjustable Pressure Switch

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

The K5 series adjustable pressure switches activates a microswitch once the preset value is reached.

The pressure is set by rotating a graduated knob which can be locked with a grub screw.

Mechanical stops protect both the spring and the microswitch from over pressurization.

The K5 adjustable pressure switches are suitable for pneumatic, hydraulic and many other applications.

The K5 pressure switch can be screwed on to the side of a Cetop 3 or Cetop 5 manifold.

Technical Details

Body:

Anodised Aluminium

Connection:

1/4" BSP Female or Cetop 3/5

Mounting:

Any Orientation

Temperature Range:

-20 to 80 Degree C

Frequency:

120 Cycles / Min

Accuracy:

1% of Set Pressure

Fixed Hysteresis:

15% of Full Scale Reading

Electrical Connection:

DIN 43650

Weatherproof:

IP65

Max Contact Load:

AC 250v (5 A)

DC 250v (0.25 A)

Manufacturers Ref:

K5/P

Datasheets

K5 Series Adjustable Pressure Switch datasheet

Click Here

Prices (Click quantity for more availability info)

	Adj. Range	Max Pressure	Order Code	Available	1+	5+
Pressure Switch
	0.2 - 2 bar	12 bar	127743	0	£167.51	£130.28
	0.5 - 5 bar	12 bar	127744	0	£167.51	£130.28
	1 - 10 bar	15 bar	127745	1	£167.51	£130.28
	3 - 15 bar	20 bar	127746	0	£167.51	£130.28
	2 - 40 bar	150 bar	127747	0	£137.84	£107.21
	5 - 100 bar	300 bar	127748	0	£137.84	£107.21
	20 - 200 bar	400 bar	127749	0	£137.84	£107.21
	30 - 300 bar	500 bar	127750	0	£137.84	£107.21
	50 - 400 bar	600 bar	127751	0	£137.84	£107.21
Cetop Manifold
	Cetop 3	350 bar	127752	0	£73.45	£57.13
	Cetop 5	350 bar	127753	0	£119.01	£92.56

(All Prices Exclude VAT)
