Description

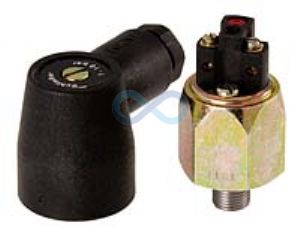

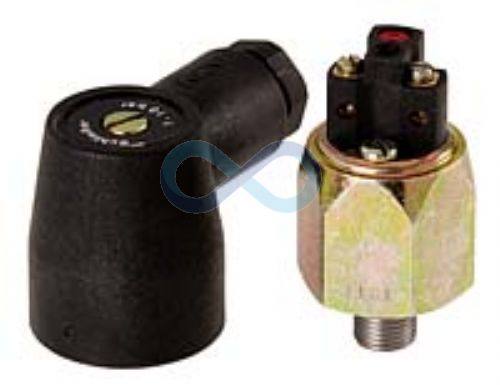

Adjustable spring loaded diaphragm type pressure switch with screw terminals designed to work on compressed air.
Protective cap can be ordered separately.
Technical Details
|
Main Data
Adjustable Range: 1 - 10 bar
Max Pressure: 300 bar
Ambient Temperature: -20 to +100 Deg C
Seals: NBR
Switching Element: Normally Open
Frequency: 200/min
Reset Pressure: 5%
Reproducibility: 5-10%
Max Voltage: 250V
max Currect: 2 A
Connection: 1/8" BSP Male
Protection (with cap): IP65 to IEC 529 (DIN VDE 0470)
|
