Description

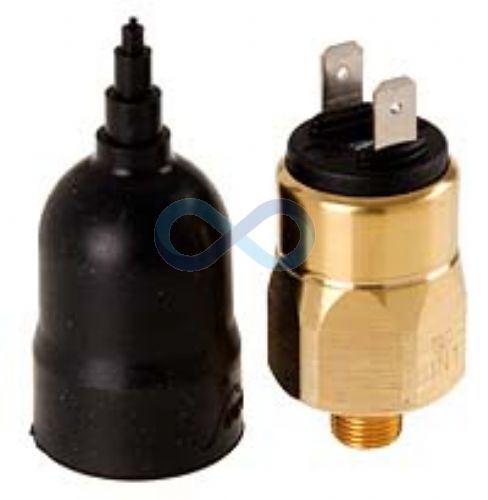

Adjustable spring loaded diaphragm type pressure switch with spade terminals designed to work on compressed air.
Protective cap can be ordered separately.
Technical Details
|
Main Data
Adjustable Range: 1 - 10 bar
Max Pressure: 20 bar
Ambient Temperature: -20 to +100 Deg C
Body: Brass
Seals: NBR
Switching Element: Normally Open
Frequency: 200/min
Max Voltage: 42V DC/AC
Rating: 100 VA
Connection: 1/8" BSP Male AMP 6.3 x 0.8
Protection (with cap): IP65 to IEC 529 (DIN VDE 0470) Terminal IP 00 |
Datasheets  Click Here |
