You are here - All Product > Air Valves > Hand operated valve
|
Description

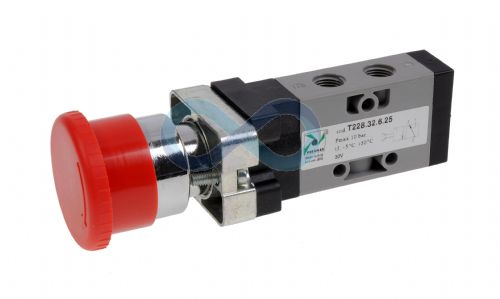

Palm button hand operated, push to operate, rotate to unlock valve with technopolymer body suitable for panel mounting (22.5mm cutout).
Applications include use as an "Emergency stop" button.
1/8" BSP and available in 3/2 and 5/2 version with red push button.
Technical Details
|
Max pressure: 10 bar
Temperature: -5 to +50 deg C
Flow rate: 620 Nl/min (@ 6 bar with 1 bar pressure drop)
Orifice size: 6mm
Operating force: 33 N
|
Datasheets  Click Here |
