Flow control valve - in line type - push in

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

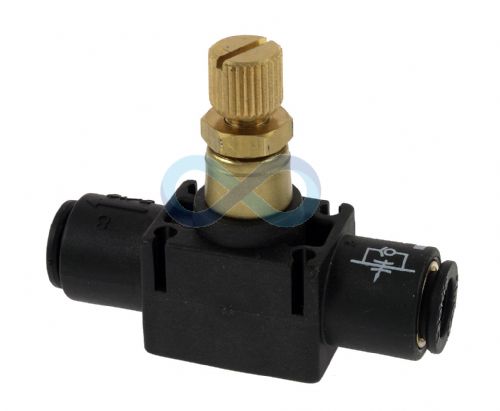

Uni directional in line throttle check valves and bi directional in Line flow regulators with LF3000 type push in fittings.

The Uni Directional version includes a non return valve so that flow is restricted in one direction only. This is often used for controlling the speed of a pneumatic cylinder.

The bi-directional version controls the flow in both directions.

The Uni Directional valve is also available in a version suitable for panel mounting.

Adjustment can be made by hand or using a screwdriver.

The 4mm and 6mm sizes of the panel mounting version incorporate "ultrafine" adjustment as standard.

Technical Details

Pressure range:

1 - 10 bar

Manufacturers ref:

7770 - Uni Directional

7772 - Bi Directional

7776 - Uni Diretional (panel mount)

Datasheets

Flow control valve - in line type - push in datasheet
Click Below

1) 7770

2) 7772

3) 7776

Prices (Click quantity for more availability info)

	OD Tube	Order Code	Available	1+	5+	20+
7770 - Uni Directional Throttle Check Valve
	4mm	106441	10	£18.64	£16.57	£15.43
	6mm	106442	9	£20.31	£18.06	£16.81
	8mm	106443	7	£22.38	£19.89	£18.52
	10mm	106444	3	£30.39	£27.01	£25.15
	12mm	106445	3	£36.77	£32.68	£30.43
7772 - Bi Directional In Line Flow Regulator
	4mm	145701	0	£20.41	£18.15	£16.89
	6mm	145702	0	£18.72	£16.64	£15.49
	8mm	145703	2	£20.61	£18.32	£17.05
7776 - Uni Throttle Check Valve (Panel Mountable)
	4mm	106446	11	£26.65	£23.69	£22.05
	6mm	106447	3	£31.67	£28.15	£26.21
	8mm	106448	7	£32.38	£28.78	£26.80
	10mm	106449	2	£48.52	£43.13	£40.15
	12mm	106450	14	£59.40	£52.80	£49.16

(All Prices Exclude VAT)
