Description

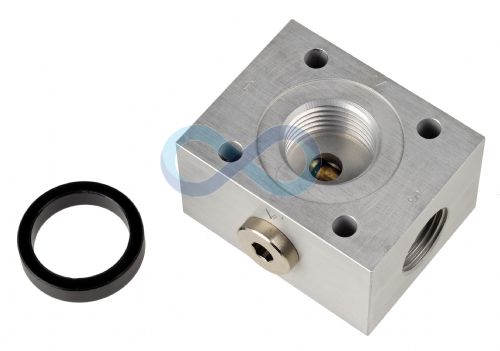

Vacuum generators provide a high vacuum (more than 85%) at a low supply pressure. They are manufactured from anodized aluminium with no moving parts and are therefore highly reliable. Can be used to replace vacuum pumps in many applications.
All have a separate connection (1/8" BSP) for fitting of different types of additional functions such as blow release, vacuum switch or vacuum gauge.
Limits:
Temperature: 0 to 60 deg C
Working pressure: 2 - 6 bar
To save energy inlet pressure should be reduced to 4bar using a pressure regulator.
The outlet should normally be fitted with a silencer
Technical Details
|
Air Max suction Mftrs Inlet Vacuum Outlet
consumption Vacuum capacity List No. (BSP) (BSP) (BSP)
21 l/min 84% 6 l/min EBP-PT-05 1/8" 1/8" 1/8"
34 l/min 86% 23 l/min EBP-PT-07 1/8" 1/8" 1/8"
60 l/min 89% 40 l/min EBP-PT-10 1/4" 1/2" 3/8"
120 l/min 87% 70 l/min EBP-PT-15 1/4" 1/2" 1/2"
225 l/min 90% 125 l/min EBP-PT-21 1/4" 1/2" 1"
420 l/min 90% 240 l/min EBP-PT-30 1/4" 1/2" 1"
|
Datasheets  Click Here |
