Polyurethane Anti Static (Mebra) 4 - 12mm od

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

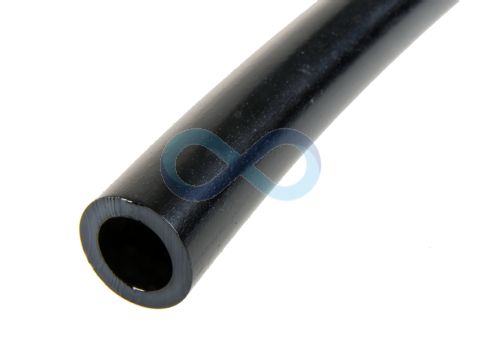

Mebra PUR 98 Anti-Static Ester based Polyurethane tube 4mm to 12mm outside diameter suitable for a wide range of applications in industry.

This range can also be used in Atex environment Group 2, 2/3 G&D category, installation Zones 1, 2.

Temperature Range: -40 to +60 deg C

Max working pressure shown is with 3:1 safety factor and at 23 deg C. For ambient temperatures higher than 23 deg C the working temperature is reduced - see datasheet for graph.

Available on request: 3/1.5, 8/6 and 10/7.5 (od/id in mm) - subject to minimum order quantities.

At Duncan Rogers we specialise in many different types of pneumatic tubing for a wide range of applications - whatever your requirements please contact us and a member of our team will be happy to help.

Technical Details

Max WP

4mm

2.5mm

15 bar

6mm

3.8mm

14 bar

8mm

5mm

15 bar

8mm

5.5mm

12 bar

10mm

6.5mm

14 bar

12mm

8mm

13 bar

Datasheets

Polyurethane Anti Static (Mebra) 4 - 12mm od datasheet

Click Here

Prices (Click quantity for more availability info)

	OD	ID	Coil	Order Code	Available	1+	5+
Per metre
	4mm	2.5mm	-	148431	0	£0.76
	6mm	4mm	-	148432	0	£1.54
	8mm	5.5mm	-	148433	0	£2.35
	8mm	5mm	-	148434	0	£2.74
	10mm	6.5mm	-	148435	0	£4.02
	12mm	8mm	-	148436	0	£5.57
50 & 100 metre coils
	4mm	2.5mm	50m	148122	0	£31.97	£25.58
	4mm	2.5mm	100m	148123	1	£63.94	£51.15
	6mm	4mm	50m	148124	0	£64.70	£51.76
	6mm	4mm	100m	148125	1	£129.41	£103.52
	8mm	5.5mm	100m	148127	1	£197.82	£158.26
	8mm	5mm	100m	148128	0	£230.42	£184.34
	10mm	6.5mm	100m	148132	1	£338.09	£270.47
	12mm	8mm	50m	148135	2	£234.26	£187.41
	12mm	8mm	100m	148136	0	£468.52	£374.82

(All Prices Exclude VAT)
