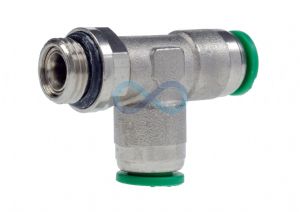

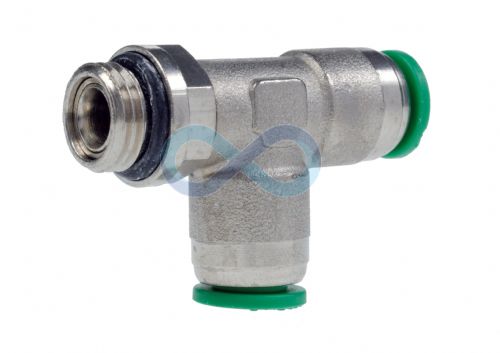

Olab Push In Run Tee with Male Thread 4mm - 12mm

Olab Push In Run Tee with Male Thread 4mm - 12mm

Olab Push In Run Tee with Male Thread 4mm - 12mm

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Run tee push in fitting with bsp parallel or taper threads and suitable for metric od tubing 4mm to 12mm.

The body is orientable about the stud end.

Technical Details

Please Note

For data sheet reference,

Manufacturers' part numbers refer as follows:

TGC=BSPP thread

TGCC=BSPT thread

Datasheets

Olab Push In Run Tee with Male Thread 4mm - 12mm datasheet
Click Below

1) F100 Flash General

2) Run Tee Threaded Male Push In

Prices (Click quantity for more availability info)

	Tube OD	Thread	Order Code	Available	1+	10+	50+	Quantity
BSPP Thread
	4mm	G1/8"	111751	59	£5.70	£4.69	£3.98
	5mm	G1/8"	111752	43	£5.80	£4.77	£4.05
	6mm	G1/8"	111753	45	£5.75	£4.72	£4.01
	-	G1/4"	111754	45	£5.91	£4.86	£4.12
	8mm	G1/8"	111755	15	£6.68	£5.49	£4.66
	-	G1/4"	111756	14	£6.91	£5.68	£4.83
	-	G3/8"	111757	22	£7.55	£6.21	£5.27
	10mm	G1/4"	111758	13	£9.75	£8.02	£6.81
	-	G3/8"	111759	47	£10.38	£8.54	£7.25
	-	G1/2"	111761	17	£11.63	£9.57	£8.12
	12mm	G1/4"	111762	21	£10.63	£8.74	£7.42
	-	G3/8"	111763	15	£11.92	£9.80	£8.32
	-	G1/2"	111764	14	£11.08	£9.11	£7.73
BSPT Thread
	4mm	R1/8"	111771	51	£5.61	£4.61	£3.92
	5mm	R1/8"	111772	43	£5.75	£4.73	£4.02
	6mm	R1/8"	111773	14	£5.61	£4.61	£3.92
	-	R1/4"	111774	34	£5.68	£4.67	£3.96
	8mm	R1/8"	111775	14	£6.75	£5.55	£4.71
	-	R1/4"	111776	31	£6.84	£5.62	£4.77
	-	R3/8"	111777	15	£7.55	£6.21	£5.27
	10mm	R1/4"	111778	19	£9.67	£7.95	£6.75
	-	R3/8"	111779	22	£10.32	£8.49	£7.21
	-	R1/2"	111781	6	£11.55	£9.50	£8.06
	12mm	R1/4"	111782	12	£10.41	£8.56	£7.27
	-	R3/8"	111783	40	£10.63	£8.74	£7.42
	-	R1/2"	111784	26	£11.08	£9.11	£7.73

(All Prices Exclude VAT)
