Filter/Regulator + Lubricator NL1 1/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

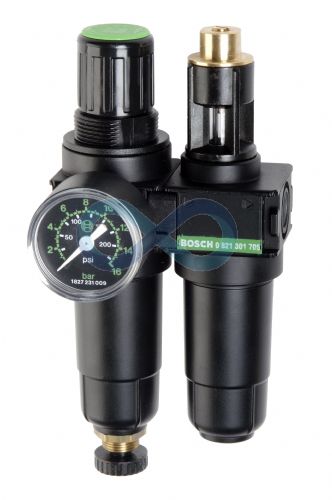

Filter/Regulator+Lubricator set for compressed air to suit a wide range of applications.

Includes pressure gauge.

Filter is particle type filter with 5 micron element. Regulator is diaphragm type (relieving).

Available with semi or fully automatic drain and metal or polycarbonate bowl. Guard for polycarbonate bowl can be ordered separately if required.

Assembly kit can be used can be used for modular assembly with other components in the NL1 range.

Two types of wall mount bracket (see related products) can be ordered separately.

Available on request: 1/8" BSP connection.

Technical Details

Supply pressure:

0.5 - 16 bar (semi automatic drain)

2 - 16 bar (automatic drain)

Outlet pressure:

10 bar (max)

Reservoir:

16 cc (Filter)

35 cc (Lubricator)

Temperature:

50 deg C

Connection:

1/4" BSP (Main)

1/8" BSP (Gauge)

Manufacturers ref:

NL1-ACD

Datasheets

Filter/Regulator + Lubricator NL1 1/4 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

	Drain	Bowl	Order Code	Available	1+	5+
Filter/Regulator+Lubricator
	Semi Automatic	Metal	102871	1	£199.04	£175.63
	Semi Automatic	Polycarbonate	102872	2	£131.35	£115.90
	Automatic	Polycarbonate	102873	2	£205.99	£181.76
Accessories/Spare parts
	Filter element	-	102901	2	£19.32	£17.39
	Assembly kit	-	102899	7	£1.69	£1.49

(All Prices Exclude VAT)
