Pressure gauges AS3 & AS5

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

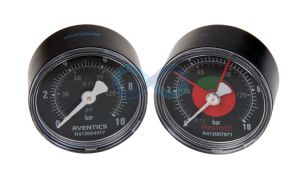

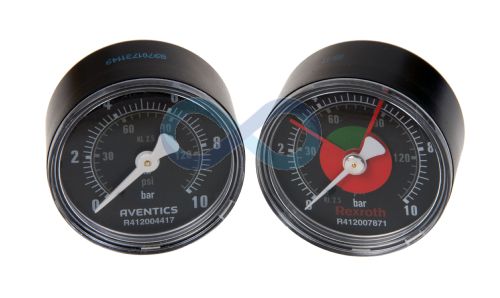

50mm diameter pressure gauge to suit the Aventics AS3 range as well as other applications.

Back connection 1/4" BSP Parallel thread includes a gasket which allows the gauge to oriented correctly.

Available in a standard version and with an adjustable work area display.

Technical Details

Background colour:

Black

Scale colour:

White/grey

Viewing window:

Polystyrene

Standardisation:

EN 837-1

Main scale (outside):

Bar (white)

Secondary scale (inside):

psi (grey)

Pointer colour:

White

Temperature:

-40 to +60 deg C

Accuracy class:

2.5

Datasheets

Pressure gauges AS3 & AS5 datasheet
Click Below

1) PG1-SAS

2) PG1-SAS-ADJ

Prices (Click quantity for more availability info)

	Range	Order Code	Available	1+	5+
Standard
	0 - 1.6 bar	123088	2	£22.41	£19.78
	0 - 2.5 bar	123089	2	£22.41	£19.78
	0 - 4 bar	123090	2	£22.41	£19.78
	0 - 6 bar	123091	2	£22.41	£19.78
	0 - 10 bar	123092	4	£22.41	£19.78
	0 - 16 bar	123093	1	£22.41	£19.78
Adjustable work area display
	0 - 1.6 bar	123094	1	£31.71	£27.98
	0 - 2.5 bar	123095	2	£31.71	£27.98
	0 - 4 bar	123096	0	£31.71	£27.98
	0 - 6 bar	123097	2	£31.71	£27.98
	0 - 10 bar	123098	2	£31.71	£27.98
	0 - 16 bar	123099	2	£31.71	£27.98

(All Prices Exclude VAT)
