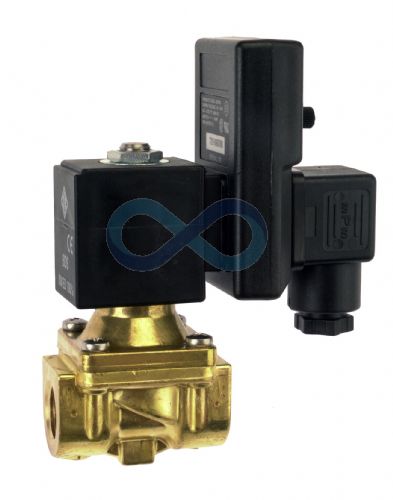

Timed Drain Valves 3/8" & 1/2" BSP 12mm orifice

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

A timed drain valve to provide automatic draining for filter bowls, separators, receivers and other components where condensate and contaminants collect. The draining interval and discharge time can be adusted according to requirements.

1 x 230V AC coil is included with the drain valve. The timer is rated for 24 - 240V AC/DC. For other supply voltages 1 coil per drain valve must be ordered separately.

Technical Details

Interval time:

0.5-45min

Pressure:

0-16 bar

Drain time:

0.5-10sec

Connection:

3/8" or 1/2" BSP

Protection:

IP65

Voltage:

24V DC/AC, 115V AC, 230V AC

Orifice:

12mm

Datasheets

Timed Drain Valves 3/8 & 1/2 BSP 12mm orifice datasheet
Click Below

1) 21H7-8

2) 720 timer

Prices (Click quantity for more availability info)

	Thread	Order Code	Available	1+	5+
Drain valve	3/8" BSP	109194	2	£117.40	£102.46
Y Strainer/Ball valve	3/8" BSP	109196	4	£26.81	£22.34
Drain valve	1/2" BSP	109197	2	£117.40	£102.46
Coil 24V DC	-	109481	3	£29.42	£25.67
Coil 24V AC	-	109482	2	£29.42	£25.67
Coil 48V AC	-	109487	2	£29.42	£25.67
Coil 115V AC	-	109483	4	£29.42	£25.67
Coil 230V AC	-	109484	3	£29.42	£25.67

(All Prices Exclude VAT)
