Rectus Series 21 Couplings - Brass

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

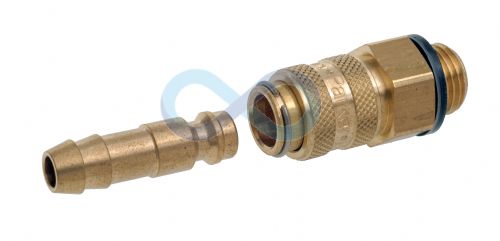

A range of Rectus series 21 mini industrial coupling and plugs with single shut off - the worlds most commonly used profile. Suitable for compressed air and water and a wide range of liquid and gaseous media.

Available with male and female parallel BSP theads. Also available with hose tail connectors.

Available on request:

Brass, nickel plated couplings & plugs
Brass/Steel double shut-off
Thermoplastic couplings and plugs
Safety coupling
Coded system
EPDM, FKM or FFKM seals

At Duncan Rogers we specialise in Rectus and other types of quick release coupling. Whatever your requirements please contact us and a member of our team will be happy to assist.

Technical Details

Material:

Brass

Seal:

NBR

Flow Rate:

132.2 GPM (501 LPM)

Diameter:

5mm

Maximum Pressure:

35 bar

Working Temperature:

-20 to +100 Degree C

Interchangeability:

Rectus 90

Camozzi

Ewo

Kani

Datasheets

Rectus Series 21 Couplings - Brass datasheet

Click Here

Prices (Click quantity for more availability info)

	Rectus Ref	Type	Size	Order Code	Available	1+	10+	50+
Rectus Series 21 Couplings
	21KAIW10MPX	Female Thread	G1/8"	124024	10	£11.50	£9.66	£7.43
	21KAIW13MPX	-	G1/4"	124025	5	£11.47	£9.63	£7.41
	21KAIW17MPX	-	G3/8"	124026	10	£13.15	£11.04	£8.50
	21KAAW10MPX	Male Thread	G1/8"	124021	2	£11.44	£9.61	£7.39
	21KAAW13MPX	-	G1/4"	124022	0	£11.44	£9.61	£7.39
	21KAAW17MPX	-	G3/8"	124023	30	£13.15	£11.04	£8.50
	21KATF04MPX	Hosetail	4mm	124027	10	£12.88	£10.82	£8.32
	21KATF06MPX	-	6mm	124028	29	£12.85	£10.80	£8.30
	21KATF08MPX	-	8mm	124029	11	£14.03	£11.78	£9.06
	21KATF09MPX	-	9mm	124030	9	£14.07	£11.82	£9.09
	21KATF10MPX	-	10mm	124031	14	£14.46	£12.14	£9.34
Rectus Series 21 Plugs
	21SFIW10MXX	Female Thread	G1/8"	124041	15	£2.84	£2.38	£1.83
	21SFIW13MXX	-	G1/4"	124042	22	£2.91	£2.45	£1.88
	21SFIW17MXX	-	G3/8"	124043	20	£3.89	£3.27	£2.52
	21SFAW10MXX	Male Thread	G1/8"	124038	18	£2.63	£2.21	£1.70
	21SFAW13MXX	-	G1/4"	124039	26	£2.78	£2.33	£1.80
	21SFAW17MXX	-	G3/8"	124040	20	£3.92	£3.29	£2.53
	21SFTF04MXX	Hosetail	4mm	124032	8	£1.86	£1.56	£1.20
	21SFTF05MXX	-	5mm	124033	2	£1.81	£1.52	£1.17
	21SFTF06MXX	-	6mm	124034	67	£1.81	£1.52	£1.17
	21SFTF08MXX	-	8mm	124035	8	£2.30	£1.93	£1.49
	21SFTF09MXX	-	9mm	124036	18	£2.27	£1.91	£1.47
	21SFTF10MXX	-	10mm	124037	16	£2.57	£2.16	£1.66

(All Prices Exclude VAT)
