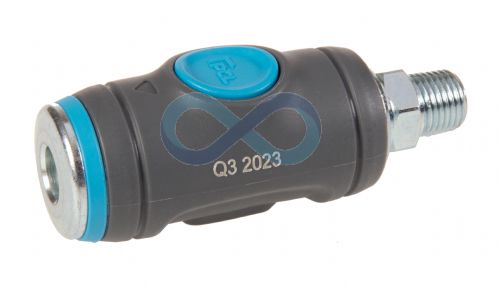

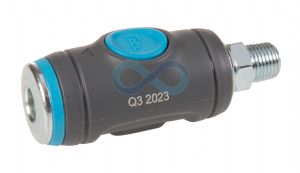

PCL Safety Coupling - Standard Push Button

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

The PCL UK standard push button safety coupling fully conforms to ISO 4414:2010.

Prevents hoses from whipping when they are disconnected thereby reducing the risk of injury.

Available with female parallel and male tapered BSP theads. Also available with hose tail connectors.

Disconnection is a two stage process.

Can be used with normal PCL standard plugs (see Airflow couplings section)

At Duncan Rogers we specialise in PCL and other types of quick release coupling. Whatever your requirements please contact us and a member of our team will be happy to assist.

Technical Details

Nominal Bore:

4.8 mm

Max Flow Rate:

43 cfm @ 100 psi

Min Working Pressure:

3 bar (43.5 psi)

Max Working Pressure:

10 bar (145 psi)

Temperature Range:

-20 to +70 Deg C

Type:

Two Stage Push Button

Interchangeability:

Prevost BSI 06

Rectus 19

Materials:

Seal:

Neoprene

Spring:

Steel

Outer Body:

Glass Filled Nylon

Inners/Connectors:

Plated Steel

Datasheets

PCL Safety Coupling - Standard Push Button datasheet

Click Here

Prices (Click quantity for more availability info)

	PCL Ref	Type	Size	Order Code	Available	1+	10+	50+
PCL Push Button Couplings
	PBS21CF	Female Thread	G1/4"	147221	2	£23.21	£18.91	£15.95
	PBS21EF	-	G3/8"	147222	2	£23.21	£18.91	£15.95
	PBS21JF	-	G1/2"	147223	0	£23.21	£18.91	£15.95
	PBS21CM	Male Thread	R1/4"	147224	2	£23.21	£18.91	£15.95
	PBS21EM	-	R3/8"	147225	0	£23.21	£18.91	£15.95
	PBS21JM	-	R1/2"	147226	2	£23.21	£18.91	£15.95
	PBS2106	Hosetail	6mm	147227	0	£23.21	£18.91	£15.95
	PBS2108	-	8mm	147228	0	£23.21	£18.91	£15.95
	PBS2110	-	10mm	147229	0	£23.21	£18.91	£15.95
	PBS2113	-	13mm	147230	0	£23.21	£18.91	£15.95

(All Prices Exclude VAT)
