Description

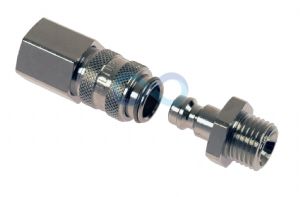

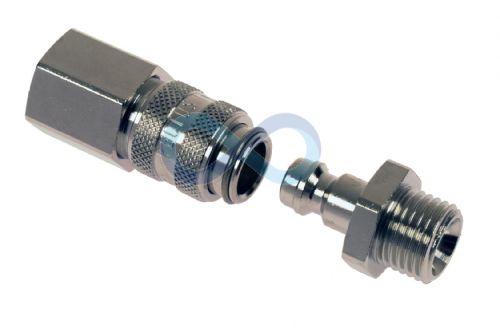

A range of Camozzi Series 5000 quick release mini couplings and plugs with single shut off suitable for a wide range of applications in industry.

Available with female and male parallel BSP theads, hose tail connectors and quick fittings. Also available with bulkhead fixing.

As of October 2025 this range is being phased out, please see alternative ranges in the Related Products section.

At Duncan Rogers we specialise in quick release couplings. Whatever your requirements please contact us and a member of our team will be happy to assist.

Technical Details

Material:

Nickel Plated Brass

Flow Rate:

18.3 l/s @ 6 bar (bore = 5.0mm)

Max Operating Pressure:

12 bar

Interchangeability:

Rectus 90

PCL mini

Rectus 21

Norgren 233

Legris 21

Cejin 50

Schrader mini

Datasheets

Camozzi Series 5000 Quick Release Mini Couplings datasheet

Click Here

Prices (Click quantity for more availability info)

	Camozzi Ref	Type	Size	Order Code	Available	1+	10+	50+
Camozzi Mini Couplings
	5051 1/4	Male Thread	G1/4”	103103	1	£11.57	£9.68	£8.68
	5052 1/4	Male Thread Bulkhead	G1/4"	132812	4	£15.95	£13.35	£11.96
	5056 09	Hosetail	9mm	132815	15	£11.95	£10.00	£8.96
	5054 6/4	Quick Fitting	6/4mm	132816	4	£12.15	£10.17	£9.11
	5058 6/4	Quick Fitting Anti Kink	6/4mm	132818	9	£14.28	£11.96	£10.71
	5055 6/4	Quick Fitting Bulkhead	6/4mm	132820	12	£16.14	£13.51	£12.10
Camozzi Mini Plugs
	5450 6/4	Quick Fitting	6/4mm	132822	9	£2.99	£2.50	£2.24
	5850 6/4	Quick Fitting Anti Kink	6/4mm	132824	6	£5.28	£4.42	£3.96

(All Prices Exclude VAT)
