Nickel Plated Brass Male/Female BSP Equal Elbow

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

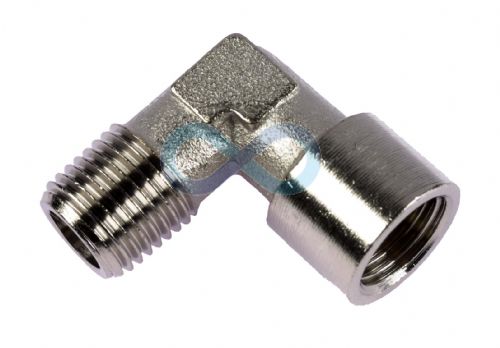

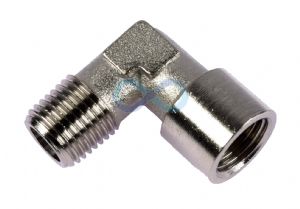

Nickel plated brass male/female equal and unequal elbows.

Available with metric M5 and BSP threads. BSP fittings have a Male Taper thread (R) and the female parallel thread (G).

Two different manufacturers - OLAB and ITV to offer you a wider choice and better availabililty

Technical Details

OLAB

1/8"

150 bar

1/4"

100 bar

3/8"

75 bar

1/2"

50 bar

3/4"

80 bar

ITV

Typ 110

Max pressure 60 bar

Datasheets

Nickel Plated Brass Male/Female BSP Equal Elbow datasheet
Click Below

1) ITV_Typ100_General

2) ITV_Typ110

Prices (Click quantity for more availability info)

Thread (BSPT) Male	Thread (BSPP) Female	Brand	Order Code	Available	1+	10+	50+
M5	M5	ITV	139767	26	£1.23	£0.98	£0.82
R1/8"	G1/8"	Olab	103077	12	£2.22	£1.69	£1.42
R1/8"	G1/8"	ITV	139768	146	£1.23	£0.98	£0.82
R1/4"	G1/8"	Olab	139991	352	£2.82	£2.15	£1.80
R1/4"	G1/8"	ITV	139839	258	£1.65	£1.32	£1.10
R1/4"	G1/4"	Olab	103078	108	£2.82	£2.15	£1.80
R1/4"	G1/4"	ITV	139769	215	£2.11	£1.69	£1.41
R3/8"	G3/8"	Olab	103079	2	£4.10	£3.12	£2.62
R3/8"	G3/8"	ITV	139770	66	£3.03	£2.42	£2.02
R1/2"	G1/2"	ITV	139771	28	£4.74	£3.79	£3.16
R3/4"	G3/4"	ITV	139772	15	£7.00	£5.60	£4.66
R1"	G1"	ITV	139773	4	£11.34	£9.07	£7.56

(All Prices Exclude VAT)
