Interpump LongLife 2SC THE202K 1/4" - 3"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

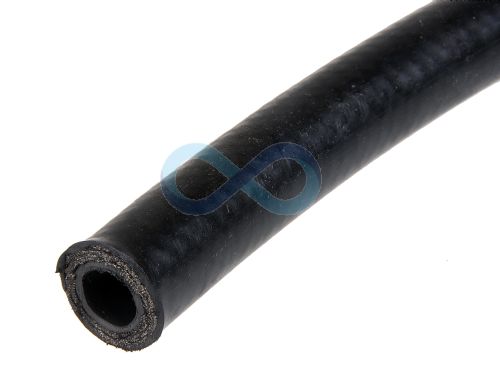

Interpump Longlife Hydraulic Hose, 2 wire reinforcement, 2SC THE002K & THE202K 1/4" - 3" suitable for a wide range of applications including agriculture, industry, construction & marine sectors.

This is a highly flexible hose with high abrasion resistance.

THE002K and THE202K are qualified for use with standard range of inserts and 001C no skive ferrule. Swaging dimensions available on request.

THE002K has a wrapped cover - this (March 2026) is being phased out. THE202K has a smooth cover up to 1" bore.

This hose comes with a wide range of approvals - see list below.

At Duncan Rogers we specialise in flexible hose and fittings for a wide range of high and low pressure applications. Whatever your requirements please contact us and a member of our team will be happy to help.

Available on request

Hose assemblies manufactured to your requirements
Crimping and cutting tools
Stainless steel inserts and ferrules

Technical Details

Approvals:

MED, RINA, BV, Lloyds, ABS, NKK, KR, DNV, CCS

Standard:

exceeds EN 857 2SC - ISO 11237

Fluids:

Mineral & Biological oils

glicol-water based

water

lubricants

Temperature:

-40 to +120 deg C

-40 to +70 deg C (water based fluids)

0 - 70 deg C (water)

Datasheets

Interpump LongLife 2SC THE202K 1/4 - 3 datasheet
Click Below

1) THE002K

2) THE202K

Prices (Click quantity for more availability info)

	Size (1/16")	ID (mm)	Min Bend Radius	Pressure	Order Code	Available	1+	10+	50+
THE002K Wrapped cover
	-04	1/4" (6.4)	50mm	430 bar	140691	28	£9.40	£7.83	£6.71
	-08	1/2" (12.7)	80mm	310 bar	140694	33	£14.21	£11.84	£10.15
	-10	5/8" (16.0)	100mm	280 bar	140695	4	£15.13	£12.61	£10.81
THE202K - Smooth Cover
	-04	1/4" (6.4)	50mm	430 bar	149021	0	£10.52	£8.76	£7.51
	-05	5/16" (8.0)	60mm	405 bar	149022	0	£11.30	£9.41	£8.07
	-06	3/8" (9.5)	70mm	350 bar	149023	4	£11.81	£9.84	£8.44
	-08	1/2" (12.7)	80mm	310 bar	149024	0	£13.86	£11.55	£9.90
	-10	5/8" (16.0)	100mm	280 bar	149025	0	£17.41	£14.51	£12.44
	-12	3/4" (19.0)	120mm	240 bar	149026	0	£19.04	£15.86	£13.60
	-16	1" (25.4)	160mm	210 bfar	149027	0	£28.16	£23.46	£20.11
	-20	1 1/4" (31.8)	250mm	160 bar	149028	0	£36.76	£30.63	£26.26
	-24	1 1/2" (38.1)	260mm	150 bar	149029	0	£54.17	£45.14	£38.69
	-32	2" (50.8)	360mm	100 bar	149030	0	£70.96	£59.13	£50.68
	-40	2 1/2" (63.5)	600mm	80 bar	149031	0	£134.25	£111.88	£95.89
	-48	3" (76.2)	760mm	65 bar	149032	0	£188.32	£156.94	£134.52

(All Prices Exclude VAT)
