R7 Hose 1/8

R7 Hose 1/8

R7 Hose 1/8" - 1"

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

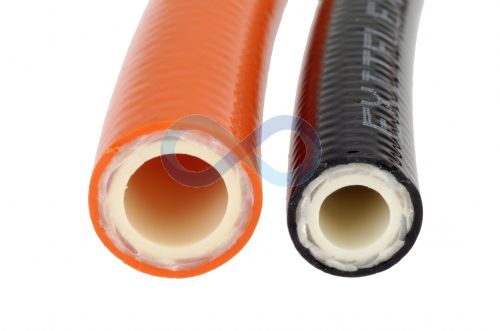

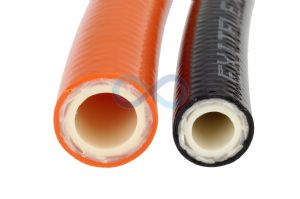

Thermoplastic elastomer tube with one braid of synthetic fibre reinforcement for medium pressure hydraulic lines 70 to 210 bar.

Suitable for Hydraulic application with increased resistance to abrasion.
Available in standard and non conductive versions.

Other sizes available on request.

Pressure shown is maximum operating pressure with 4:1 safety factor.

Technical Details

Temperature:

-40 to +120 Deg C

Material:

Core:

Thermoplastic Elastomer

Reinforcement:

1 braid of synthetic fibre

Cover:

Pin Pricked Polyurethane

Colour:

Standard:

Black

Non Conductive:

Orange

Application Standards:

SAE 100 R7 / DIN EN 855

Manufacturers ref:

PH148 (standard)

PH151 (non conductive)

Datasheets

R7 Hose 1/8 - 1 datasheet

Click Here

Prices (Click quantity for more availability info)

	Size (1/16")	ID (mm)	OD (mm)	Pressure	Order Code	Available	1+	10+	50+	Quantity
PH148 - R7 Standard Hose Per Metre
	-2	3.2mm	8.1mm	210 bar	130531	51	£3.71	£2.88	£2.16
	-3	4.8mm	10.3mm	210 bar	130532	26	£3.77	£2.93	£2.20
	-4	6.4mm	12.4mm	190 bar	130533	45	£5.16	£4.01	£3.01
	-5	8.0mm	14.2mm	175 bar	130534	0	£5.34	£4.15	£3.11
	-6	9.5mm	15.7mm	155 bar	130535	37	£5.85	£4.55	£3.41
	-8	12.7mm	19.3mm	140 bar	130536	13	£7.65	£5.95	£4.46
	-10	16.0mm	23.1mm	105 bar	130537	0	£9.17	£7.13	£5.35
	-12	19.0mm	26.4mm	90 bar	130538	7	£11.18	£8.69	£6.52
	-16	25.4mm	33.3mm	70 bar	130539	0	£16.10	£12.52	£9.39
PH151 - Non Conductive Hose Per Metre
	-3	4.8mm	10.3mm	210 bar	130541	0	£3.97	£3.08	£2.31
	-4	6.4mm	12.4mm	190 bar	130542	0	£5.43	£4.22	£3.17
	-5	8.0mm	14.2mm	175 bar	130543	0	£5.62	£4.37	£3.28
	-6	9.6mm	15.7mm	155 bar	130544	0	£6.13	£4.77	£3.57
	-8	12.8mm	19.3mm	140 bar	130545	0	£8.00	£6.22	£4.67
	-12	19.2mm	26.4mm	90 bar	130547	0	£13.00	£10.11	£7.58
	-16	25.5mm	33.3mm	70 bar	130548	0	£16.96	£13.19	£9.90
Ferrule - Mild Steel
	-2	-	-	-	130601	16	£3.39	£2.80	£2.39
	-3	-	-	-	130602	193	£1.36	£1.13	£0.96
	-4	-	-	-	130603	141	£1.24	£1.02	£0.87
	-5	-	-	-	130604	117	£1.37	£1.14	£0.97
	-6	-	-	-	130605	133	£1.46	£1.21	£1.03
	-8	-	-	-	130606	122	£2.17	£1.79	£1.52
	-10	-	-	-	130607	49	£3.62	£2.99	£2.54
	-12	-	-	-	130608	63	£3.96	£3.27	£2.79
	-16	-	-	-	130609	33	£7.12	£5.89	£5.01
Ferrule - Stainless Steel
	-3	-	-	-	131451	0	£19.08	£15.76	£13.43
	-4	-	-	-	131452	0	£18.55	£15.33	£13.06
	-5	-	-	-	131453	0	£18.81	£15.54	£13.24
	-6	-	-	-	131454	6	£19.08	£15.76	£13.43
	-8	-	-	-	131455	13	£20.84	£17.22	£14.67
	-10	-	-	-	131457	4	£30.93	£25.55	£21.76
	-12	-	-	-	131456	4	£47.10	£38.91	£33.14

(All Prices Exclude VAT)
