You are here - All Product > Hydraulic Couplings > Flat Face Couplings

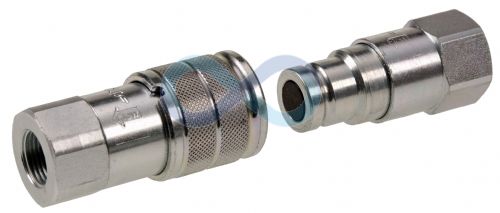

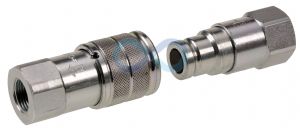

Prolasa Flat Face Couplings

Flat Face - dust plugs & caps

Related Products

• Printer Friendly Page
• Skip to Technical Details
• Skip to Description
• Skip to Prices

Description

Flat face couplings according to ISO 16028. Suitable for hydraulic and other applications.

Dust plugs and caps can be ordered separately - see related products section.

Manufacturers ref: PLT1

Available on request: EPDM, Viton or Neoprene seals

Technical Details

Body & Probe: all steel construction, stressed components nitrided or induction hardened Finish: Zinc plated Seals: NBR Backing ring: Teflon Springs: C98 steel or stainless steel Temperature: -25 to +125 deg C

Datasheets Click Here

Prices (Click quantity for more availability info)

	Thread Size	ISO Size	Pressure	Order Code	Available	1+	5+	Quantity
Flat Face - Carrier
	1/4" BSP	6.3mm	315 bar	123011	0	£36.25	£27.52		Add to Basket
	3/8" BSP	10.0mm	250 bar	123012	20	£34.52	£26.21		Add to Basket
	1/2" BSP	10.0mm	250 bar	123013	0	£32.61	£24.76		Add to Basket
	3/4" BSP	12.5mm	250 bar	123014	2	£50.82	£38.59		Add to Basket
	3/4" BSP	19.0mm	250 bar	123015	1	£137.41	£104.33		Add to Basket
	1" BSP	19.0mm	250 bar	123016	2	£108.56	£82.43		Add to Basket
	1 1/4" BSP	25.0mm	250 bar	123017	0	£201.19	£152.76		Add to Basket
	1 1/2" BSP	40.0mm	250 bar	123018	0	£457.83	£347.61		Add to Basket
	2" BSP	50.0mm	250 bar	123019	0	£1,183.03	£898.23		Add to Basket
Flat Face - Probe
	1/4" BSP	6.3mm	315 bar	123020	0	£20.10	£15.26		Add to Basket
	3/8" BSP	10.0mm	250 bar	123021	7	£16.17	£12.28		Add to Basket
	1/2" BSP	10.0mm	250 bar	123022	0	£16.17	£12.28		Add to Basket
	3/4" BSP	12.5mm	250 bar	123023	7	£28.03	£21.28		Add to Basket
	3/4" BSP	19.0mm	250 bar	123024	1	£74.42	£56.51		Add to Basket
	1" BSP	19.0mm	250 bar	123025	2	£60.14	£45.67		Add to Basket
	1 1/4" BSP	25.0mm	250 bar	123026	0	£112.26	£85.24		Add to Basket
	1 1/2" BSP	40.0mm	250 bar	123027	0	£228.94	£173.83		Add to Basket
	2" BSP	50.0mm	250 bar	123028	0	£700.48	£531.85		Add to Basket

(All Prices Exclude VAT)
