A range of nozzles and hydraulic couplers for connecting the grease gun with the relevant grease nipple.
All of the connectors are available with the common connection threads and are therefore suitable for all standard grease guns.
Available in stardard, hook on & conical versions.
The standard connector is a hydraulic coupler with 4 punched jaws (515) which is suitable for hydraulic type grease nipples according to DIN 71412 (H1, H2, H3 & H67). Available in Steel.

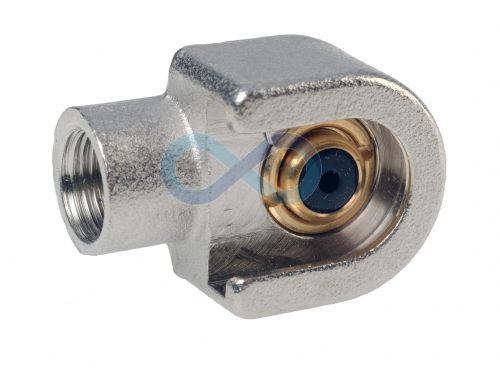

The hook on connector (521), also knows as the button head coupler is equipped with the hose connection at the side and is available in aluminium or steel. This type of connector is suitable for button head grease nipples according to DIN 3404 (M1 & T1B)
The Conical connector (502/S) is a pointed nozzle which is suitable for flush type grease nipples according to DIN 3405 (D1). Available in Steel.
